Compression Systems

Our Compression Systems, for testing to ASTM D2412, offer the following features:
  • Digital controller features a 32 bit microprocessor for fast, accurate data acquisition and automatic control
  • Live indication of load and position
  • Maximum stroke available: 42 inches, 60 inches, per design
  • Maximum load range available: 10,000 lbs, 20,000 lbs, 30,000 lbs
  • Horizontal clearance between columns: 22 inches, per design
  • Vertical clearance between platens: 45 inches, per design
  • Four column loading system with multiple load cells available
  • Speed range: 0.2 to 2.0 inches per minute under full load

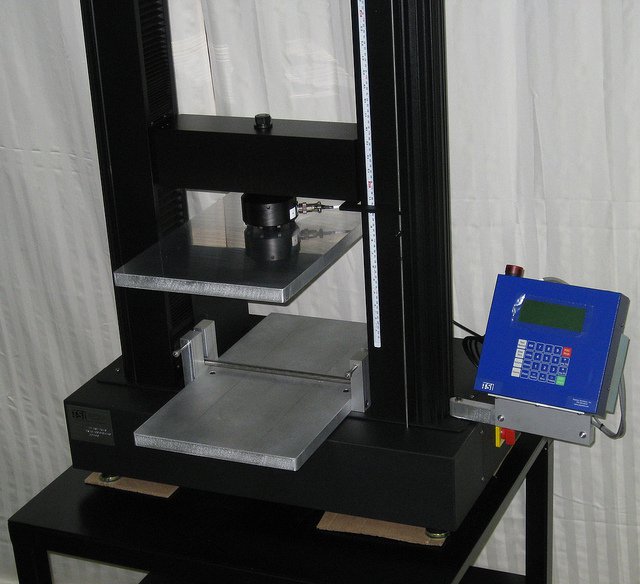

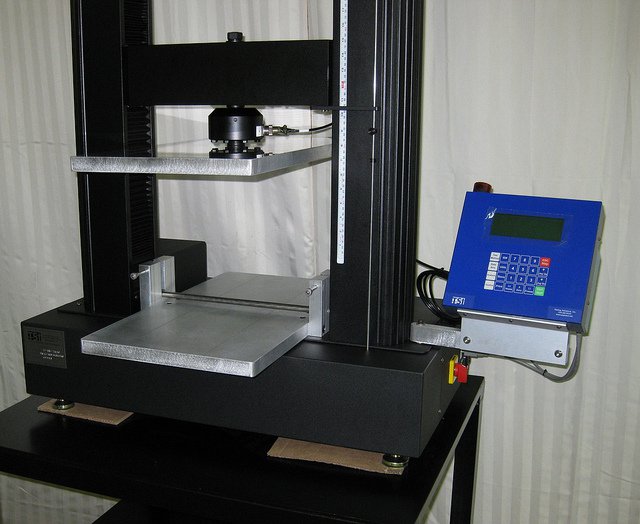

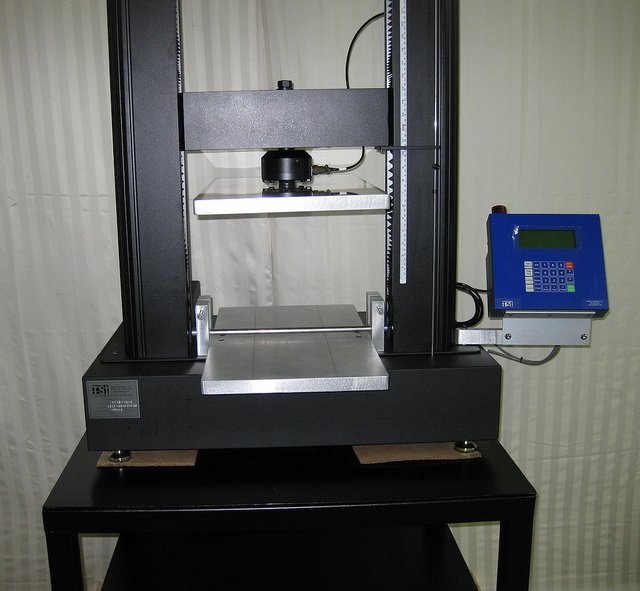

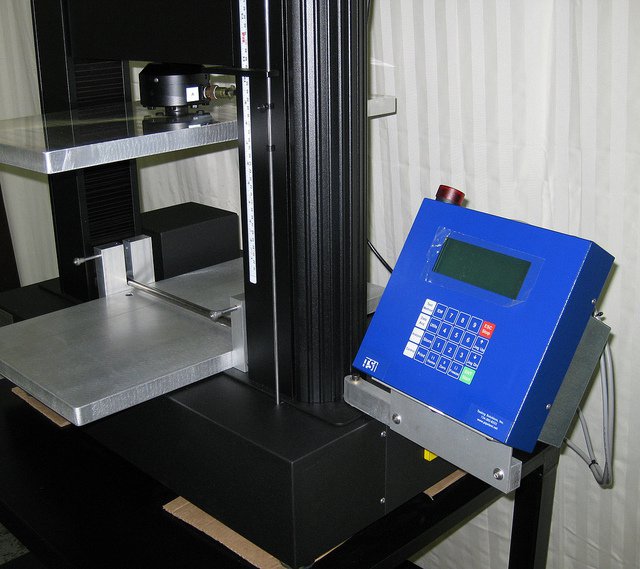

Image of Compression Systems
Compression Systems4
Compression Systems5
Compression Systems6
Compression Systems7
